Armourshake

Premium Shingles – Limited Lifetime Warranty¹

An Upscale Home as Unique as Yours Deserves an Armourshake Roof Because It’s One of a Kind Too.

Armourshake premium asphalt roofing shingles are our ultimate in design, thickness, heavy weight, and generous exposure. An extra course of IKO Armour starter strip further enhances their already-­impressive dimensional thickness.

Their unique contours, shape and pattern create deep contrasting shadows for maximum visual exposure and scale that’s especially stunning on steeper slopes. And they qualify for a Class 3 Impact Resistance rating* (Class 4 Impact Resistance Rating available in Shadow Black only).

*This rating is solely for the purpose or enabling residential property owners to obtain a reduction in their residential insurance premium, if available. This is not a guarantee of impact resistance against hail. Damage from hail is not covered under the Limited Warranty.

Unlike some other shingles on the market, Armourshake is constructed of two fiberglass mats, laminated together for strength, durability and flexibility. Even the standard architectural shingles you see on so many estate homes in upscale neighborhoods can’t compare to the elegant look you can attain with Armourshake.

Armourshake Shingles work and perform even more beautifully with CRC INTEGRA Roofing Components like StormShield® Ice and Water Protector (for eave protection).



Contractor’s Edition Brochure

Homeowner’s Brochure

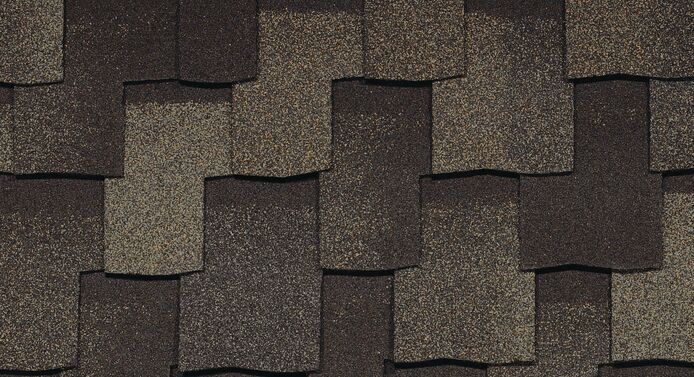

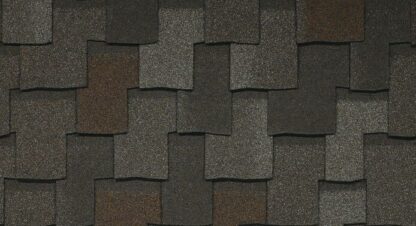

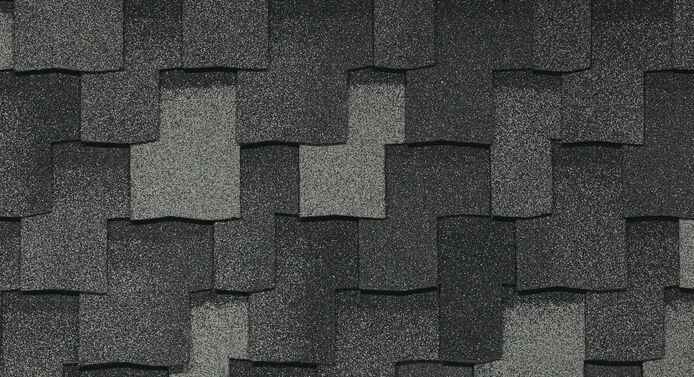

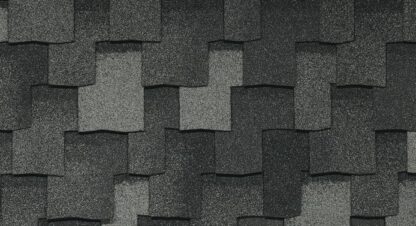

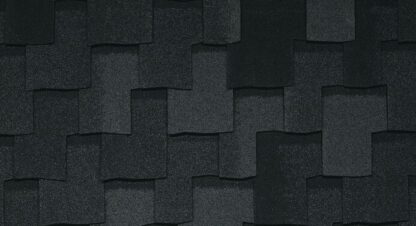

Swatch gallery

Specifications & Standards

Standards4

ASTM D3462
ASTM D3018
ASTM D3161 Class - F
ASTM E108 Class - A
ASTM D7158 Class - H
CSA A123.5
FM 4473 Class 3, Class 4 (Shadow Black only).⁵

Specifications3
Size:
950 mm x 475 mm (37 3/8" x 18 11/16")
Exposure:
140 mm (5 1/2")
Coverage Per Package:
5 Bundles/sq.
Qty Per Pallet:
45
Shingles Per Square:
70
Quantity Per Unit/Package:
14
Warranty Term:
Limited Lifetime¹
Limited Wind Warranty: Upgrade:
177 km/h (110 mph)¹
210 km/h (130 mph)¹, ²
Fire Resistance Rating:
Class A
Iron Clad Protection Period:
15 years¹

Disclaimer

Impact Resistance Rating: Class 3* & Class 4 (Shadow Black only.)*

¹ See Limited Warranty for complete terms, conditions, restrictions and application requirements. Shingles must be applied in accordance with application instructions and local building code requirements. “Lifetime” means the period of time commencing on the date of the completion of the installation of the shingles on the building and continuing so long as the owner or the first transferee owns the building on which the shingles were installed.
² High Wind Application is required.
³ All values shown are approximate.
⁴ Product is designed to these Standards as applicable at time of manufacture.
⁵ This rating is solely for the purpose of enabling residential property owners to obtain a reduction in their residential insurance premium, if available. This is not a guarantee of impact resistance against hail. Damage from hail is not covered under the limited warranty.

Note: CRC strives to accurately reproduce the screen images of the shingle swatches and house photos shown. However due to manufacturing variances, the limitations of your monitor resolution, and the variation in natural exterior lighting, actual colors may vary from the images you see. To ensure complete satisfaction, please make your final colour selection from several full size shingles and view a sample of the product installed on a home. Algae Resistant - this article contains a preservative to help inhibit discoloration by algae.

*Packaged in IKO wrappers.

Installation Guides & Data Sheets

Application Instructions

Technical Data Sheets
